BL Touch Auto Bed Leveling Sensor For Ender Series
${propertiesText}
x ${productNum}
Added to the cart
Continue To Shopping
View Cart
People who bought this item also bought
BLTouch Sensor Guide: All You Need to Know

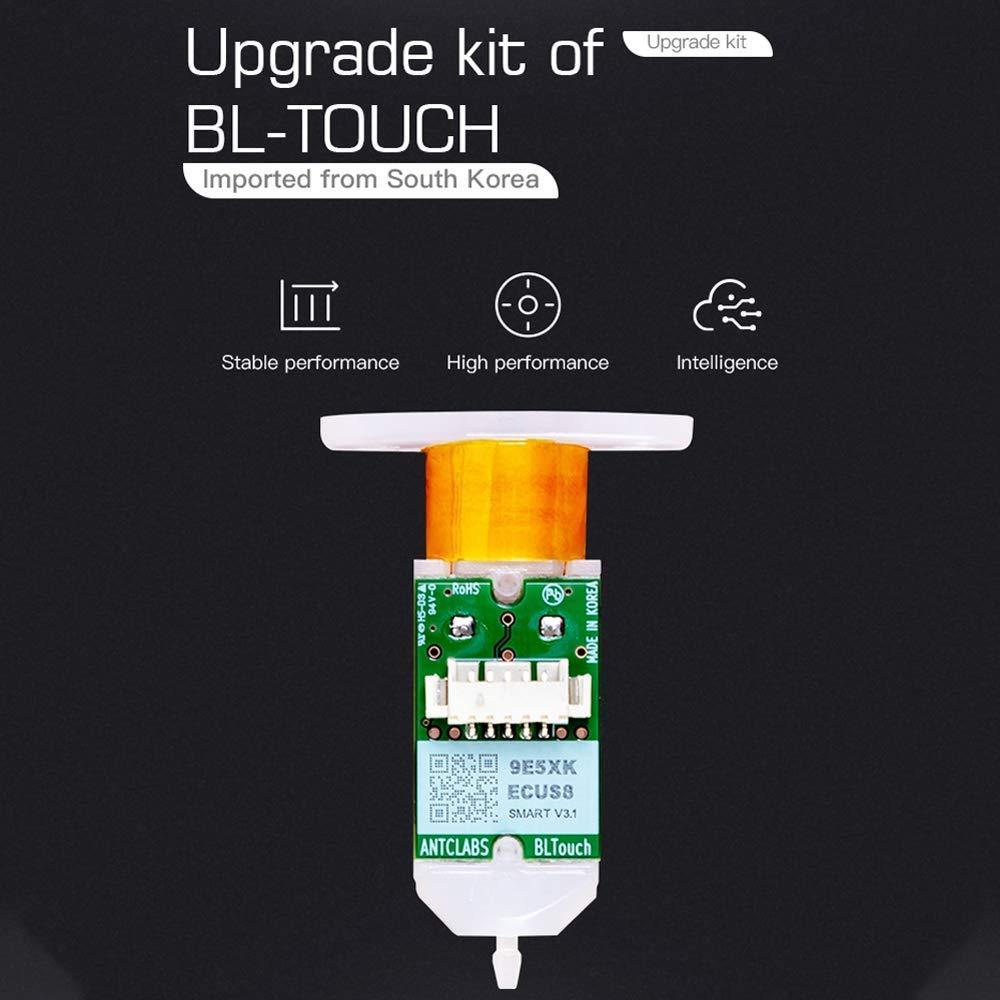

BLTouch is a type of semiconductor hall sensor and is an electronic component for 3D Printers. A precisely measures the tilt of the bed surface. It could work with any kind of bed material, such as glasses, wood, metals, and so on.
BLTouch is fulfilled with simple structure and high precision by using progressively designed solenoid and hall sensors. It aims for user convenience and enjoyable printing by adding many smart functions, such as self-test, alarm, alarm release & Touch Switch mode, Blue LED for servo signal indicating, and Z-probe(Zmin) Testing.
- Main Features: The main functions and controls of BLTouch are the same as the usual auto bed leveling sensor, which consists of an RC servo and microswitch. Thus, BLTouch can be applied on almost every board.
Self-test： The push pin operates two times in a test when the power is on.
Alarm： The LED light blinks if a problem was found on a self-test or during operation

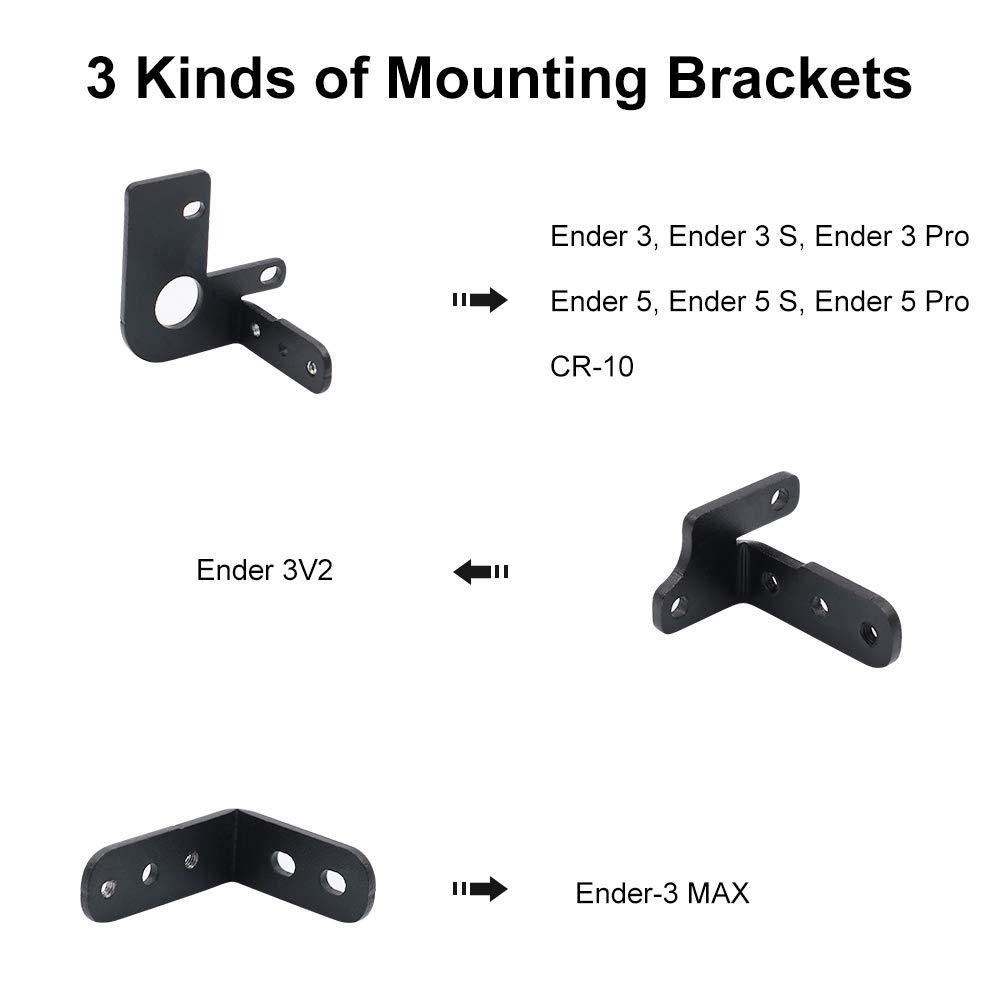

Wiring defect indicator： Blue and Red LED for indicating wiring defects. - Compatibility： This new upgraded Creality BL Touch works for Creality Ender 3 V2/Ender 3/Ender 3 Pro/Ender 3S/Ender 3 MAX/Ender 5/Ender 5 Pro/CR-10 with 32 bit V4.2.2 or V4.2.7 mainboard (Note: ONLY for 32-bit motherboard 3d printers mentioned above). With 3 kinds of install racks for different model's printer.

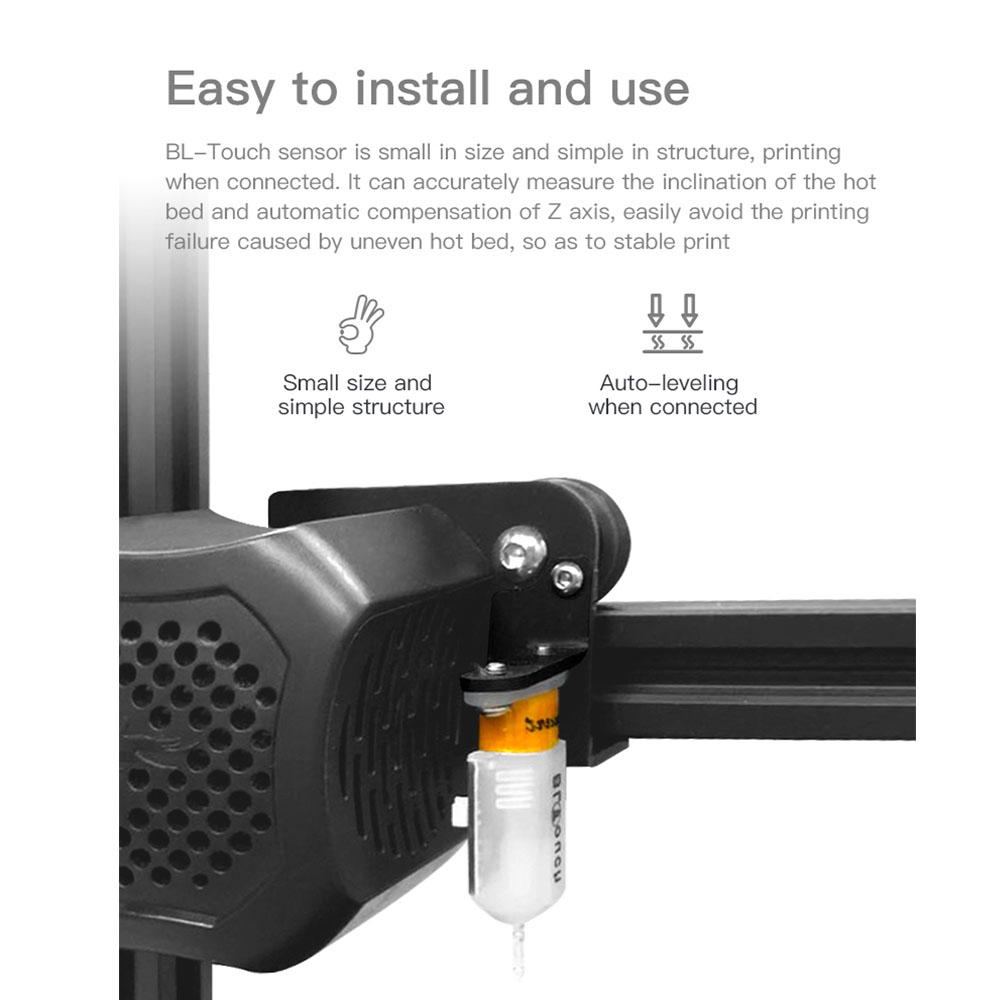

- Easy to Use: This auto bed leveling sensor makes it easier to level the hotbed, which can precisely measure the tilt of the Bed surface. Bed leveling is not a problem anymore.
- Intelligence self-check and alarm: The function of auto leveling is adopted to make it easier to use and to increase the success rate of shaping.
- Wide application： Compatible with ABS, PLA, glass, metal, plastic, and all materials.Support more filaments and apply to every control board of 3D printer

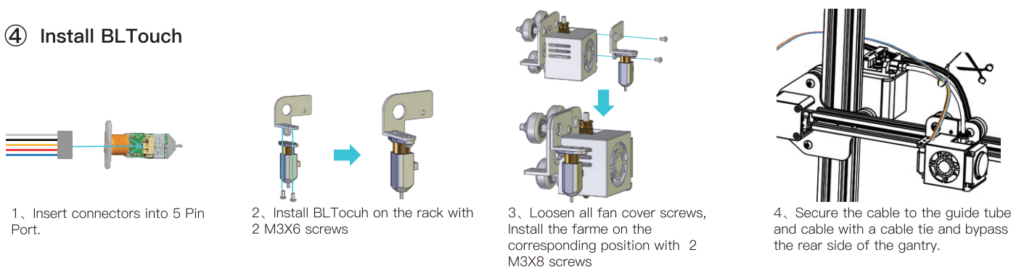

How to Install Creality BL Touch?

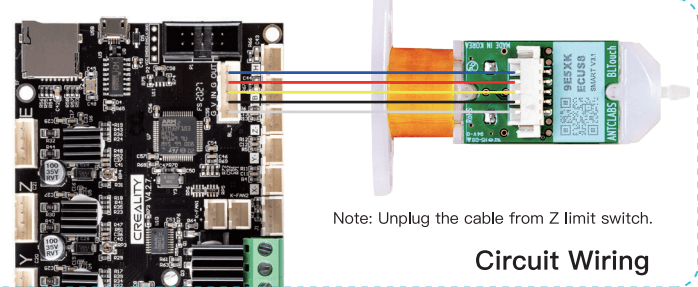

How to connect the wiring (Ender-3-V2 with V4.2.7 32-bit mainboard)?
Customer Reviews
Based on 32 reviews
81%
(26)
3%
(1)
13%
(4)
3%
(1)
0%
(0)
Write A Review
Ask A Question
Phil
Got through about 2 successful prints, and the BL Touch didn't stow correctly. The system performed the 9 point check, returned back to 0,0 and the probe did not retract, causing it to snap. Worked great until this point.
Capt_Bob
This probe is truly a must-have accessory for your printer.
It made my life way easier.
Albert
Thank goodness for the community! One big issue i had with the BLTouch is the Z-Stop signal wires are reversed. Even some of the online documentation had it incorrect. Plenty of online documentation showing the correct orientation. Once i swapped the signal cables around, the bltouch detected and stopped the extruder from going down further. Everything else was pretty straight forward: Installed firmware using ultimaker cura 4.5 thru the USB Port, setting the Z-offset, adding in some additional code to the GCode when slicing. All in all it was a quick install. If anything, i spent WAY more time just OCD'ing with wire management :)
Mike
Instructions are better looked up online through youtube but it works great once you can get the z-offset situated! i love not having to manually level anymore!
JeremyX
I have the Silent mainboard v1.1.5.
After install the hardware, upgrade the Silent mainboard FW directly using Octopi, auto bed level, adjust Z offset, enter initial G code and it is good to go.
Steve Wigley
Easy enough to install. Had some issues flashing firmware because apparently only certain USB ports show up as a COM port and it wouldn't connect my PC to the 3D printer because of it, so that's my bad. Learned that the firmware on the website is out of date so I used TH3D's version which works great. Did a couple test prints and I'm very happy with how well the first layer is laid.
Note: Instructions have some misspellings and the image of progisp shows LowValue and HighValue values swapped vs what they say in text. Go with what the text says to do.
Xander
Q
does this work with the ender 3?
A
Yes,it work for Ender 3
